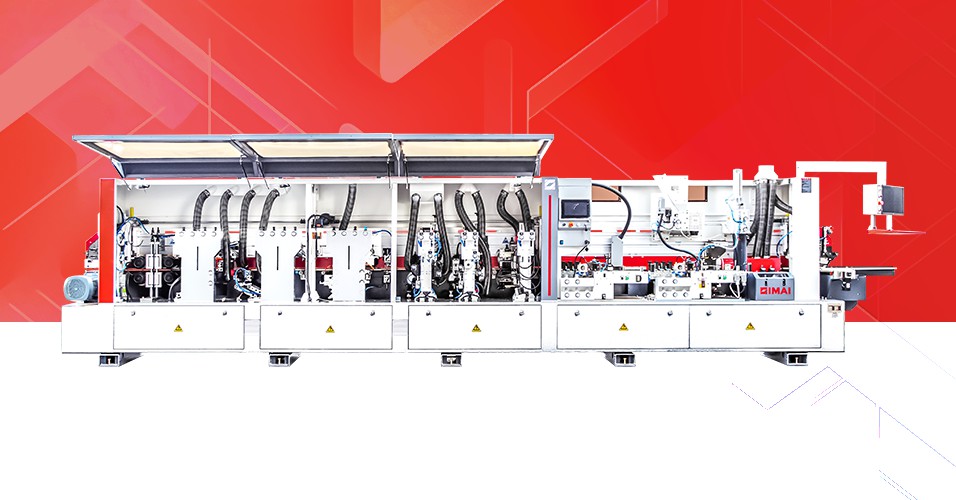

NC350-E-P-L is a fully automatic double-glued crawler edge banding machine, using a heavy-duty steel rail and steel beam combination frame, with a maximum speed of up to 26m/min.This model has complete functions, stable and powerful system, intelligent operation control and high-speed and efficient production, which is suitable for mass production of panel furniture.Using high-quality materials and brand configuration, it can be adapted to high and low temperature climates and other harsh enviro
Main functions: narrow plate auxiliary pushing → servo feeding ruler→ separator→ pre-milling → infrared baking lamp → top glue pot 1 (optional no-cleaning glue pot and glue machine) → top 2 kg PUR glue pot → servo belt welt 1→3KW rectangular spot laser system → servo belt welt 2→ heavy-duty rough trimming → Servo heavy-duty fine trimming → servo heavy-duty scraping → flat scraping → fast flush head → heavy-duty four-head tracking → cleaning agent → two sets of polishing
型号 | Model | NC350-E-P-L |
电动升降 | Electrical Lift | ● |
总功率 | Motor Power | 39.18 kw |
外形尺寸 | Overall size(L*W*H) | 8500*760*1850mm |
进给速度 | Feed Speed | 16-23-26m/min |
板料宽度 | Panel Width | ≥60mm |
板料厚度 | Panel Thickness | 8~60mm |
封边带宽度 | Edge Tape Width | 12~65mm |
封边带厚度 | Edge Tape Thickness | 0.3-3mm |
整机重量（KG) | The whole weight | 5500 |
