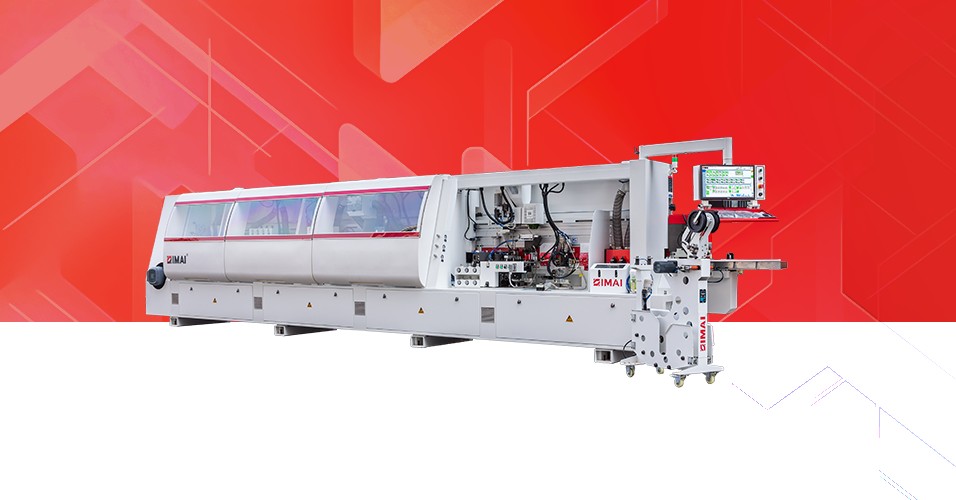

NC350H is a fully automatic intelligent high-speed edge banding machine with a maximum speed of 32m/min.This model has complete functions, stable and powerful system, intelligent operation and control environment for production and operation, and has the characteristics of stable production, maintenance-saving, and durability.
Main functions: PC intelligent system→ narrow plate auxiliary pushing → servo feeding ruler→separator→pre-milling → infrared baking lamp 1→2-channel automatic belt feeding → reserved position optional PUR/EVA double gluing →pump glue system → fast melt glue → servo gluing → servo belt welt →heavy-duty rough trimming → front flush→ heavy-duty servo double-wheel double R finishing→ heavy-duty servo double-wheel double R scraping →floating flat scraping → front and rear flush →fast tracking →cleaning agent → single group polishing→ slotting (adjustable horizontally and vertically)
型号 | Model | NC350H |
电动升降 | Electrical Lift | ● |
总功率 | Motor Power | 32.47kw |
外形尺寸 | Overall size(L*W*H) | 8700*1000*1850mm |
进给速度 | Feed Speed | 16-23-26-29-32m/min |
板料宽度 | Panel Width | ≥ 65mm |
板料厚度 | Panel Thickness | 8~60mm |
封边带宽度 | Edge Tape Width | 15~65mm |
封边带厚度 | Edge Tape Thickness | 0.4-3mm |
整机重量（KG) | The whole weight | 5500 |
