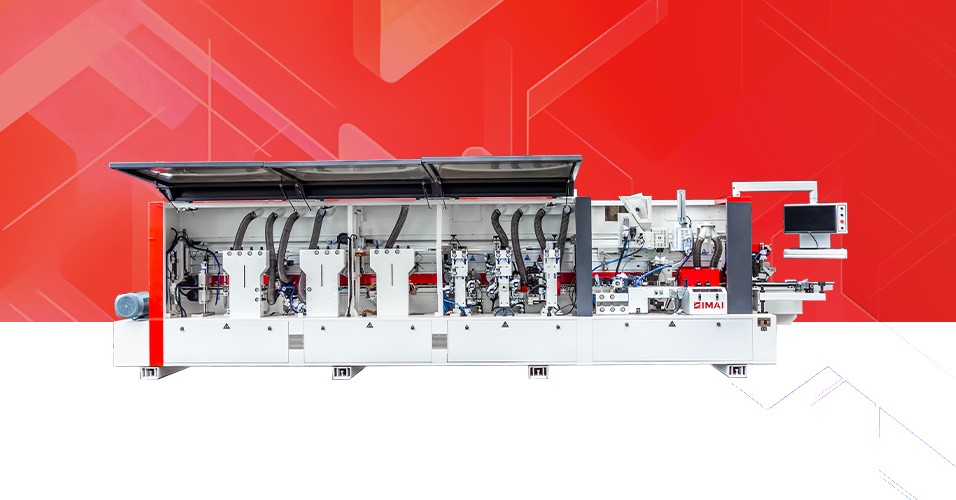

NC350 is a fully automatic high-speed edge banding machine with a heavy-duty steel rail and aluminum beam combination frame, with a maximum speed of 26m/min.This model has complete functions, stable and powerful system, intelligent operation control and high-speed and efficient production, which is suitable for mass production of panel furniture.Using high-quality materials and brand configuration, it can be adapted to high and low temperature climates and other harsh environments for production
Main functions: narrow plate auxiliary pusher→separator → servo feeding ruler→ pre-milling → infrared baking lamp → quick melt glue → top coating → servo precision belt delivery → five-wheel yaw type pressing → heavy-duty rough repair → heavy-duty servo finishing → heavy-duty servo edge scraping → floating flat scraping → front and rear flush heads → four-head tracking → cleaning agent → single group polishing
型号 | Model | NC350 |
电动升降 | Electrical Lift | ● |
总功率 | Motor Power | 31.46Kw |
外形尺寸 | Overall size(L*W*H) | 7500*760*1850mm |
进给速度 | Feed Speed | 16-23-26m/min |
板料宽度 | Panel Width | ≥ 60mm |
板料厚度 | Panel Thickness | 10~60mm |
封边带宽度 | Edge Tape Width | 12~65mm |
封边带厚度 | Edge Tape Thickness | 0.3-2mm |
整机重量 | The whole weight | 3500KG |
