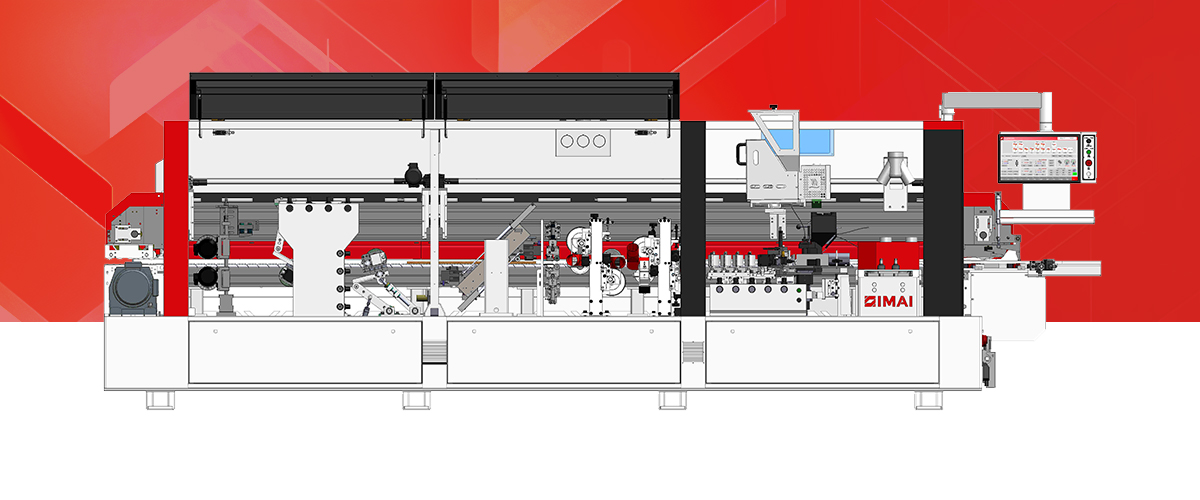

NC320 is a fully automatic high-speed edge banding machine with a heavy-duty steel rail and aluminum beam combination frame, with a maximum speed of 26m/min.This model has complete functions, stable and powerful system, intelligent operation control and high-speed and efficient production, which is suitable for mass production of panel furniture.Using high-quality materials and brand configuration, it can be adapted to high and low temperature climates and other harsh environments for production
Main functions: narrow plate auxiliary pusher→separator → servo feeding ruler→ pre-milling → infrared baking lamp → quick melt glue → top coating → servo precision belt delivery → five-wheel yaw pressing → servo trimming→ servo scraping → floating flat scraping → front and rear flush head → fast tracking → cleaning agent → single group polishing
| 型号 | Model | NC320 |
| 电动升降 | Electrical Lift | ● |
| 总功率 | Motor Power | 26.89kw |
| 外形尺寸 | Overall size(L*W*H) | 5900*760*1850mm |
| 进给速度 | Feed Speed | 16-23-26m/min |
| 板料宽度 | Panel Width | ≥ 60mm |
| 板料厚度 | Panel Thickness | 8~60mm |
| 封边带宽度 | Edge Tape Width | 12~65mm |
| 封边带厚度 | Edge Tape Thickness | 0.4-2mm |
| 整机重量 | The whole weight | 2700KG |
