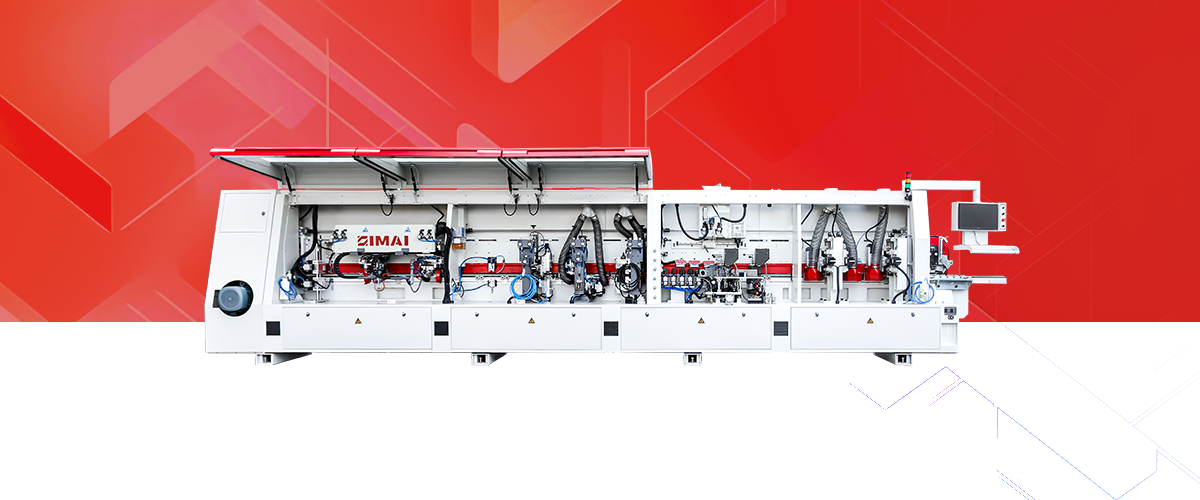

NC580Q是一款全自动软成型封边机采用重型钢轨铝梁组合机架。可生产斜边、L 型边、J 型边、C 型边等特殊板材封边。具备生产稳定、省维修、耐用性等特点。
Main functions: separator → servo curve milling→ pre-milling → infrared baking lamp → quick melt glue → EVA coating → single-channel automatic belt welt →rough repair → heavy-duty finishing 1→ heavy-duty finishing 2→ heavy-duty edge scraping → floating flat scraping → magnetic levitation horizontal flush head → cleaning agent → two sets of polishing
| 型号 | Model | S580Q |
| 电动升降 | Electrical Lift | ● |
| 总功率 | Motor Power | 35.34kw |
| 外形尺寸 | Overall size(L*W*H) | 7900*1000*1850mm |
| 进给速度 | Feed Speed | 16-23-26-29-32m/min |
| 板料宽度 | Panel Width | ≥65mm |
| 板料厚度 | Panel Thickness | 8~60mm |
| 封边带宽度 | Edge Tape Width | 15~65mm |
| 封边带厚度 | Edge Tape Thickness | 0.4-3mm |
| 整机重量 | The whole weight | 5000KG |
