Main functions: separator→ pre-milling → milling type → infrared baking lamp→ top-mounted gluing 1→ top-mounted gluing delivery belt → forming and pressing 1→ top-mounted gluing 2→ top-mounted gluing 2→ top-mounted gluing 3→ top-mounted gluing delivery belt 3→ forming and pressing 3→ double-track quick flush →trimming → finishing → scraping → flat scraping 1→flat scraping 2→ cleaning agent → polishing

型号	Model	NC320
电动升降	Electrical Lift	●
总功率	Motor Power	36.18kw
外形尺寸	Overall size(LWH)	85009701970mm
进给速度	Feed Speed	16-23-26-29-32m/min
板料宽度	Panel Width	≥ 65mm
板料厚度	Panel Thickness	8~60mm
封边带宽度	Edge Tape Width	15~65mm
封边带厚度	Edge Tape Thickness	0.4-3mm
整机重量	The whole weight	5200KG

Previous : Automatic high-speed edge banding machine-S480CX Next : S350JCX automatic soft forming edge banding machine

Copy product links

Long by picture save/share

INQUIRY

Inquiry MORE+

Name *
E-mail *
WhatsApp
Message
Submit

Security Code

Refresh the code

Cancel

Confirm

Inquiry Content：

You have no items to require

Add Successfully

Continue To Visit Inquiry Now

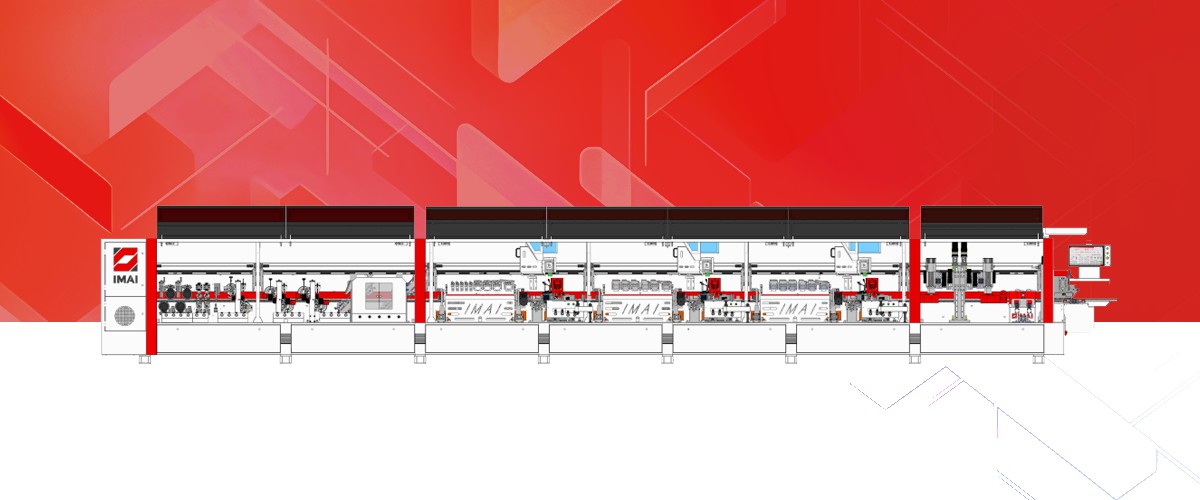

S350JCX automatic soft forming edge banding machine
