Main functions: PC intelligent system→ separator → servo feeding ruler → servo pre-milling 1→infrared baking lamp →20KG PUR gluing machine → cleaning-free gluing device→ 6-channel servo belt feeding → five-wheel yaw type pressing welt → heavy-duty rough trimming → magnetic levitation flush head → heavy-duty servo double-disc double-R trimming→ heavy-duty servo double-disc double-R scraping → magnetic levitation flush tail→ floating flat scraping → cleaning agent → single group polishing

型号	Model	NC820-6
电动升降	Electrical Lift	●
总功率	Motor Power	51kw
外形尺寸	Overall size(LWH)	920011001970mm
进给速度	Feed Speed	16-23-26-29-32m/min
板料宽度	Panel Width	≥ 270mm
板料厚度	Panel Thickness	8~60mm
封边带宽度	Edge Tape Width	14~65mm
封边带厚度	Edge Tape Thickness	0.4-3mm
整机重量	The whole weight	11000KG

Previous : NC826-6 automatic intelligent double-ended high-speed edge banding machine (rear machine) Next : S810 basic double-ended edge banding machine

Copy product links

Long by picture save/share

INQUIRY

Inquiry MORE+

Name *
E-mail *
WhatsApp
Message
Submit

Security Code

Refresh the code

Cancel

Confirm

Inquiry Content：

You have no items to require

Add Successfully

Continue To Visit Inquiry Now

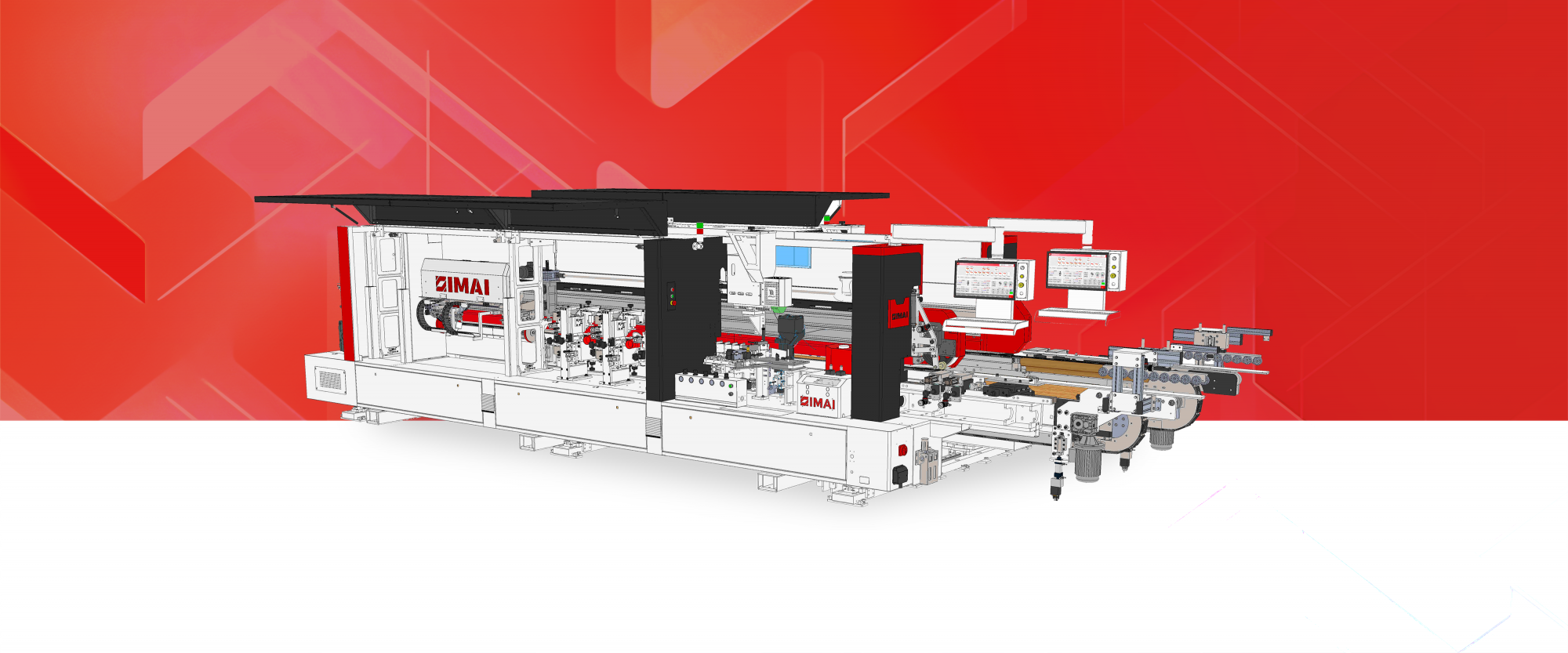

NC820-6 automatic intelligent double-ended high-speed edge banding machine
