Main functions: separator→ servo pre-milling → infrared baking lamp→ top-mounted gluing 1→ Servo belt pressing → heavy-duty rough repair → magnetic levitation flush head → heavy-duty servo finishing→ heavy-duty servo edge scraping → flat scraping→ magnetic levitation flush tail→ KFB2 magnetic levitation tracking at both ends →cleaning agent → polishing → servo slotting

型号	Model	NC680H
电动升降	Electrical Lift	●
总功率	Motor Power	28kw
外形尺寸	Overall size(LWH)	85007601850mm
进给速度	Feed Speed	16-23-26m/min
板料宽度	Panel Width	≥ 65mm
板料厚度	Panel Thickness	8~60mm
封边带宽度	Edge Tape Width	12~65mm
封边带厚度	Edge Tape Thickness	0.4-3mm
整机重量	The whole weight	5500KG

Previous : S680JCX automatic soft forming edge banding machine Next : NC680C high-speed intelligent edge banding machine

Copy product links

Long by picture save/share

INQUIRY

Inquiry MORE+

Name *
E-mail *
WhatsApp
Message
Submit

Security Code

Refresh the code

Cancel

Confirm

Inquiry Content：

You have no items to require

Add Successfully

Continue To Visit Inquiry Now

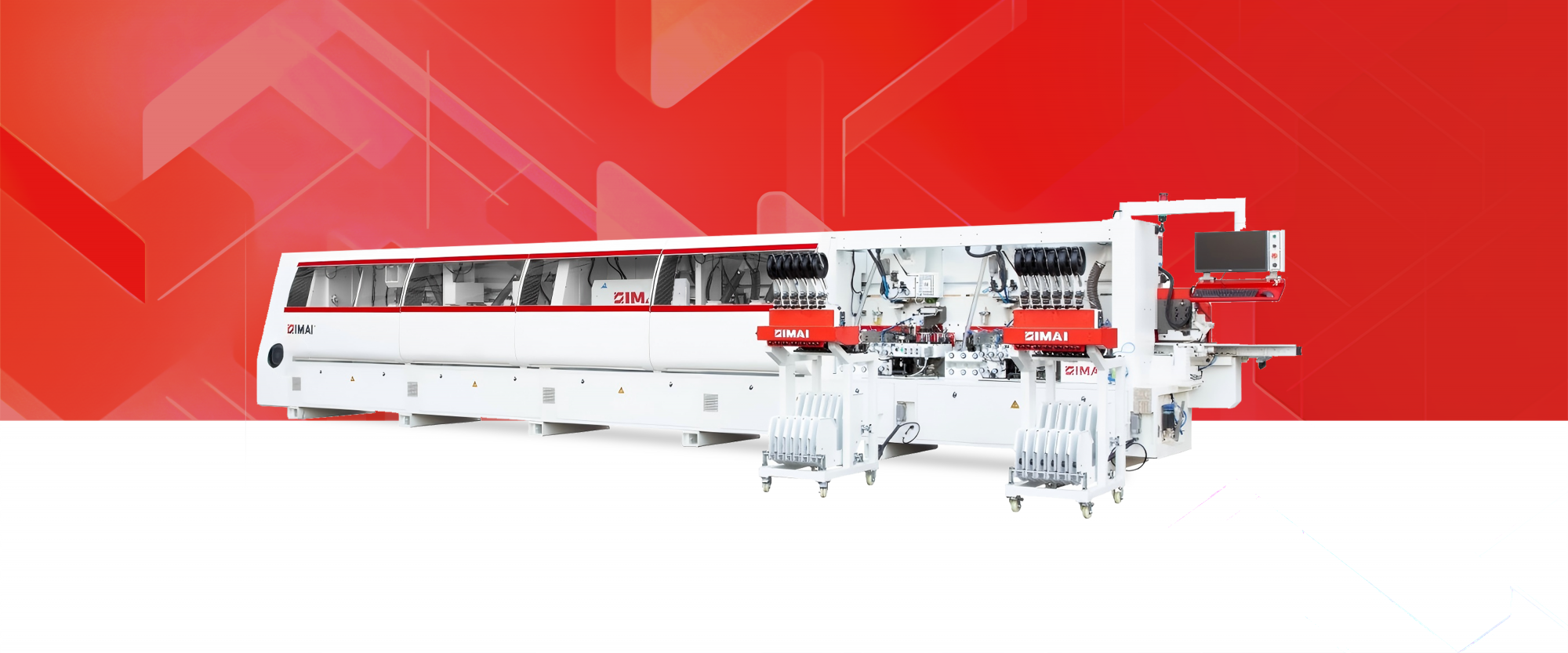

NC680H magnetic levitation intelligent high-speed edge banding machine
