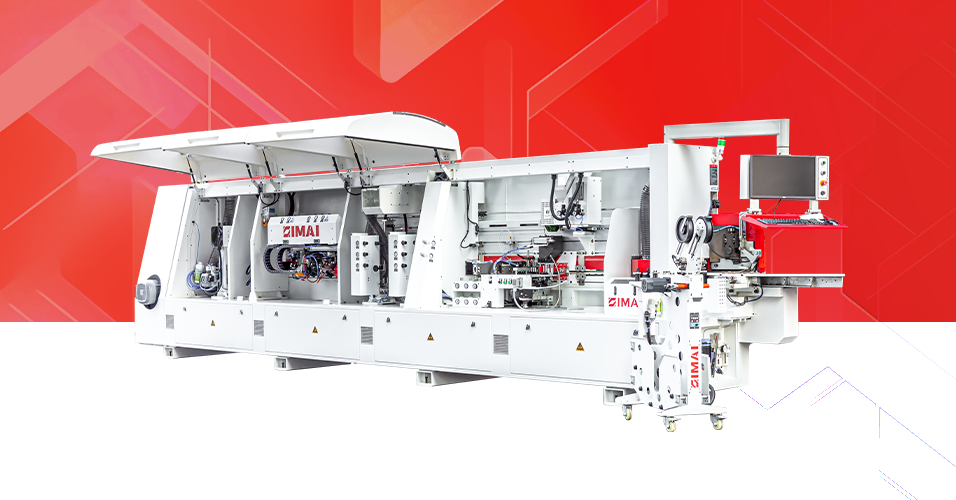

NC580H is a fully automatic intelligent high-speed edge banding machine with a maximum speed of 32m/min.This model has complete functions, stable and powerful system, intelligent operation control and high-speed and efficient production, which is suitable for mass production of panel furniture.Using high-quality materials and brand configuration, it can be adapted to high and low temperature climates and other harsh environments for production and operation, and has the characteristics of stable
Main functions: PC intelligent system→ narrow plate auxiliary pushing → servo feeding ruler→separator→pre-milling → infrared baking lamp 1→2-channel automatic belt feeding → reserved position optional PUR/EVA double gluing →pump glue system → quick melt glue → top gluing → servo belt welt → heavy-duty rough trimming → servo flush head → heavy-duty manual two-wheel finishing→ heavy-duty manual two-wheel scraping → floating flat scraping → servo flush tail→cleaning agent → single group polishing → slotting (adjustable horizontally and vertically)
| 型号 | Model | NC580H |
| 电动升降 | Electrical Lift | ● |
| 总功率 | Motor Power | 35.34kw |
| 外形尺寸 | Overall size(L*W*H) | 7900*1000*1850mm |
| 进给速度 | Feed Speed | 16-23-26-29-32m/min |
| 板料宽度 | Panel Width | ≥65mm |
| 板料厚度 | Panel Thickness | 8~60mm |
| 封边带宽度 | Edge Tape Width | 15~65mm |
| 封边带厚度 | Edge Tape Thickness | 0.4-3mm |
| 整机重量 | The whole weight | 5000KG |
