Main functions: PC intelligent system→ separator → servo feeding ruler→ pre-milling → infrared baking lamp → PUR gluing machine (optional dual-pump gluing machine) → EVA gluing device 1→ two-color cleaning-free gluing device 2 → servo belt feeding → five-wheel yaw type pressing welt → heavy-duty rough repair → servo flush head → heavy-duty servo finishing → heavy-duty servo scraping edge → floating flat scraping→ servo flush tail→ KFB magnetic levitation tracking → cleaning agent→ double polishing → Supai patented small screen

型号	Model	NC480KFB
电动升降	Electrical Lift	●
总功率	Motor Power	36.18kw
外形尺寸	Overall size(LWH)	85009701970mm
进给速度	Feed Speed	16-23-26-29-32m/min
板料宽度	Panel Width	≥ 65mm
板料厚度	Panel Thickness	8~60mm
封边带宽度	Edge Tape Width	15~65mm
封边带厚度	Edge Tape Thickness	0.4-3mm
整机重量	The whole weight	5200KG

Previous : S480CY six-sided seamless edge banding machine Next : NC480 servo high speed edge banding machine

Copy product links

Long by picture save/share

INQUIRY

Inquiry MORE+

Name *
E-mail *
WhatsApp
Message
Submit

Security Code

Refresh the code

Cancel

Confirm

Inquiry Content：

You have no items to require

Add Successfully

Continue To Visit Inquiry Now

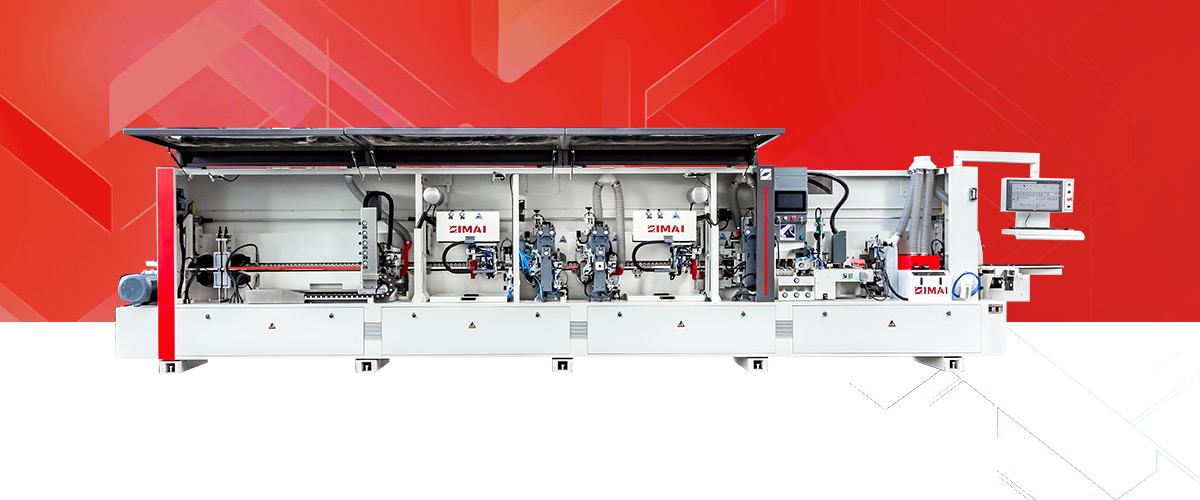

NC480KFB magnetic levitation single-head tracking intelligent edge banding machine
